Do we really want Containers?

• An environment is required
  • Overhead of building containers and pods
• A management layer is required
  • Overhead of configuring service availability (orchestrator)
• Backends are required
  • Overhead of management of support features
    • Database servers, monitoring…
  • Always-on servers
    • May scale down to 0, but then latency overhead on next request

Introducing: Serverless

• Real cloud-native applications: only provide code to implement business core features

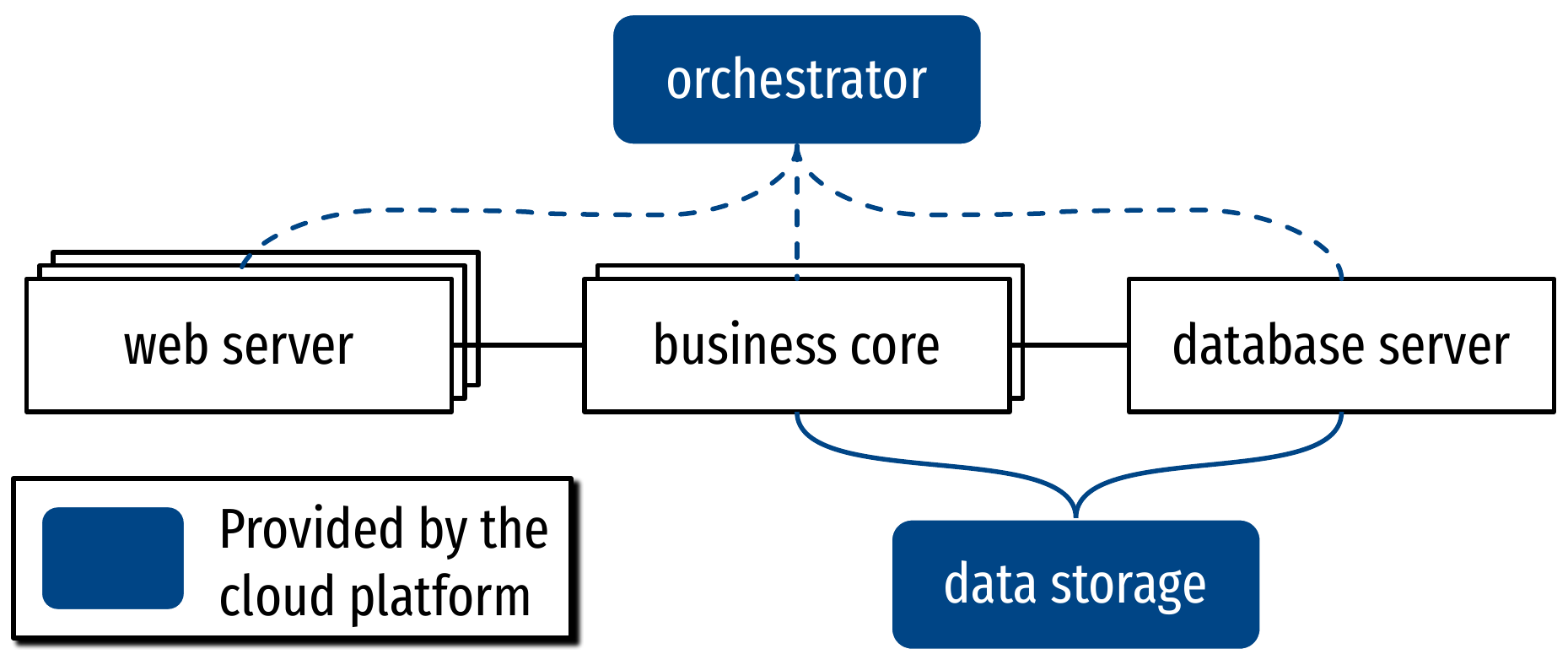

  • A continuation from micro-services
• Management and execution service provided by the cloud platform
  • From execution environment to service availability

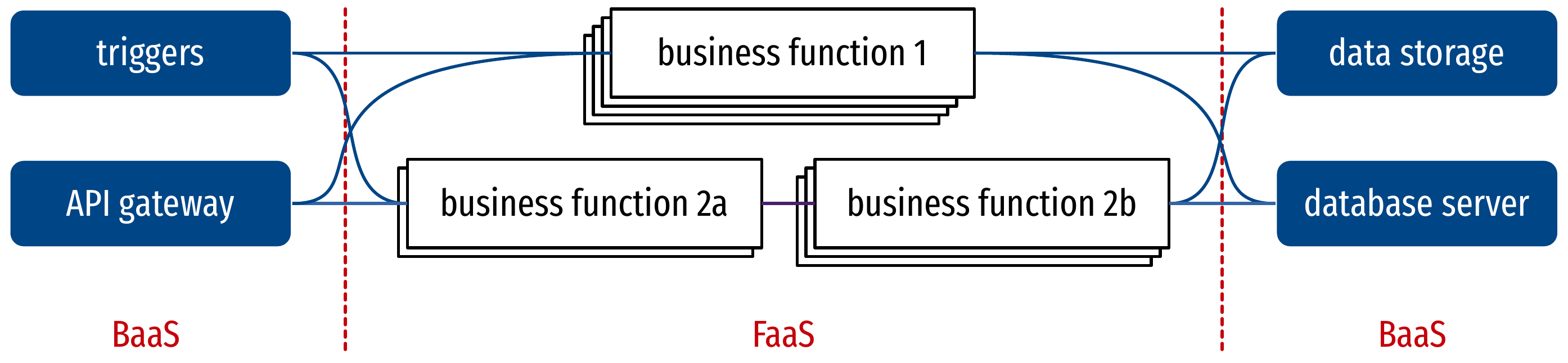

• Serverless = Function-as-a-Service + Backend-as-a-Service

Backend-as-a-Service (BaaS)

• Common backend components in applications architectures
  • Database servers, messages queues, (object) storage, Pub/Sub services…
• A good thing: better served by the cloud provider
  • Mutualized, no overhead for the user, always available
  • Provides an ecosystem of ready-to-use components
    • But beware of vendor lock-in!
• Elasticity requirements: scale in synchronization with the FaaS workload (see next)
  • dynamically
  • quickly
  • up and also down to zero

Function-as-a-Service (FaaS)

• Run application code without fixed long-lived servers
  • Execution runtimes are spawned on-demand
  • Fully managed by the cloud FaaS platform
• Unit of execution, and unit of application architecture: a function
  • I.e., a singular feature of the application
• Applications are (mostly) event-driven
  • Triggered by requests or events from BaaS sources
  • Mainly asynchronous processing
• Parallelism at the level of the cloud function, managed by the platform
  • Technically, concurrency is possible inside the cloud function
• Core feature of serverless

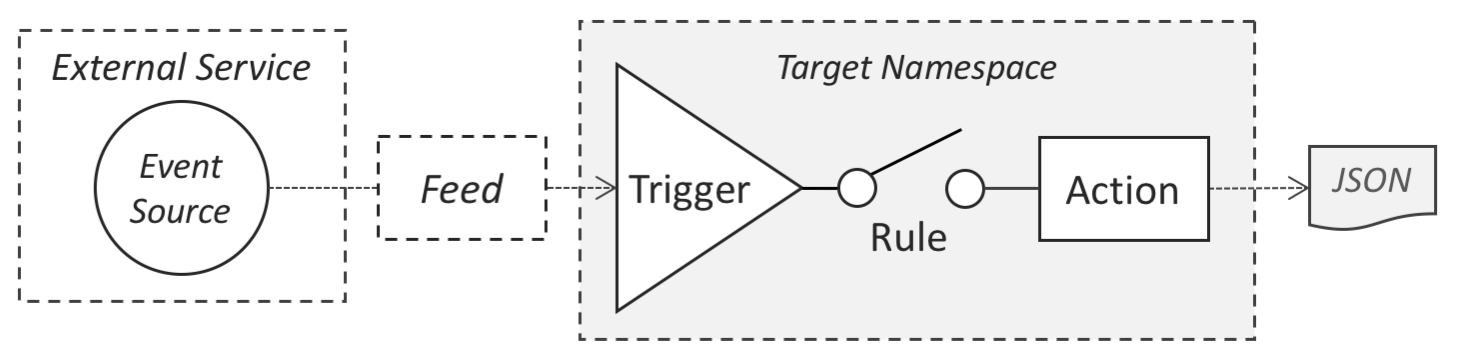

Demo: Apache OpenWhisk

1. Create a new function
2. Manually invoke a function
3. Use the API gateway to invoker a function as the backend to REST requests
4. Use triggers to integrate function invocation
5. Present warm and cold starts

Example of FaaS Function

from platform_api import KeyValueStore

def main(args, env):
    """Entrypoint to the cloud function

    :param args: dictionary (JSON) of arguments passed in the request
    :param env: dictionary (JSON) of environment variables
    """
    name, place = args['name'], args['place']

    # Totally fictitious example of using a key-value store from BaaS.
    with KeyValueStore(env['TOKEN']) as cnx:
      age = cnx.get('age', {'id': name})

    msg = f'Hello {name} from {place}!'

    # Return a result (a dictionary, translated to JSON).
    return {
        'greetings': msg,
    }

What makes a FaaS application

• Naturally multi-process thanks to platform-level parallelism

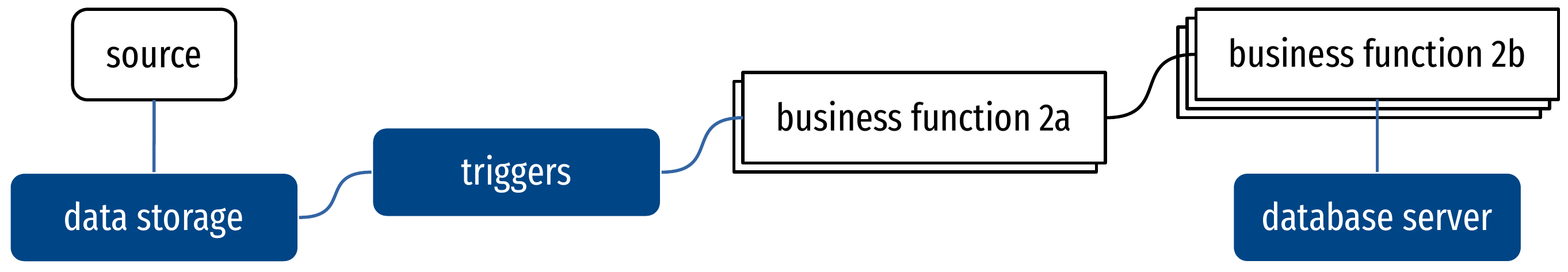

• Chains and graphs of processing dependency between functions
  • Chain function calls to implement complex features with fine control granularity
  • Next level: handle a dependency graph (MapReduce pattern, etc.)
    • Some vendors integrate it, often must be done manually
• In practice: platform-level configuration + code pieces
• To execute functions:
  • Use provided environments: NodeJS, Python, Java…
  • Or provide a custom environment: Docker images, opaque binary executables

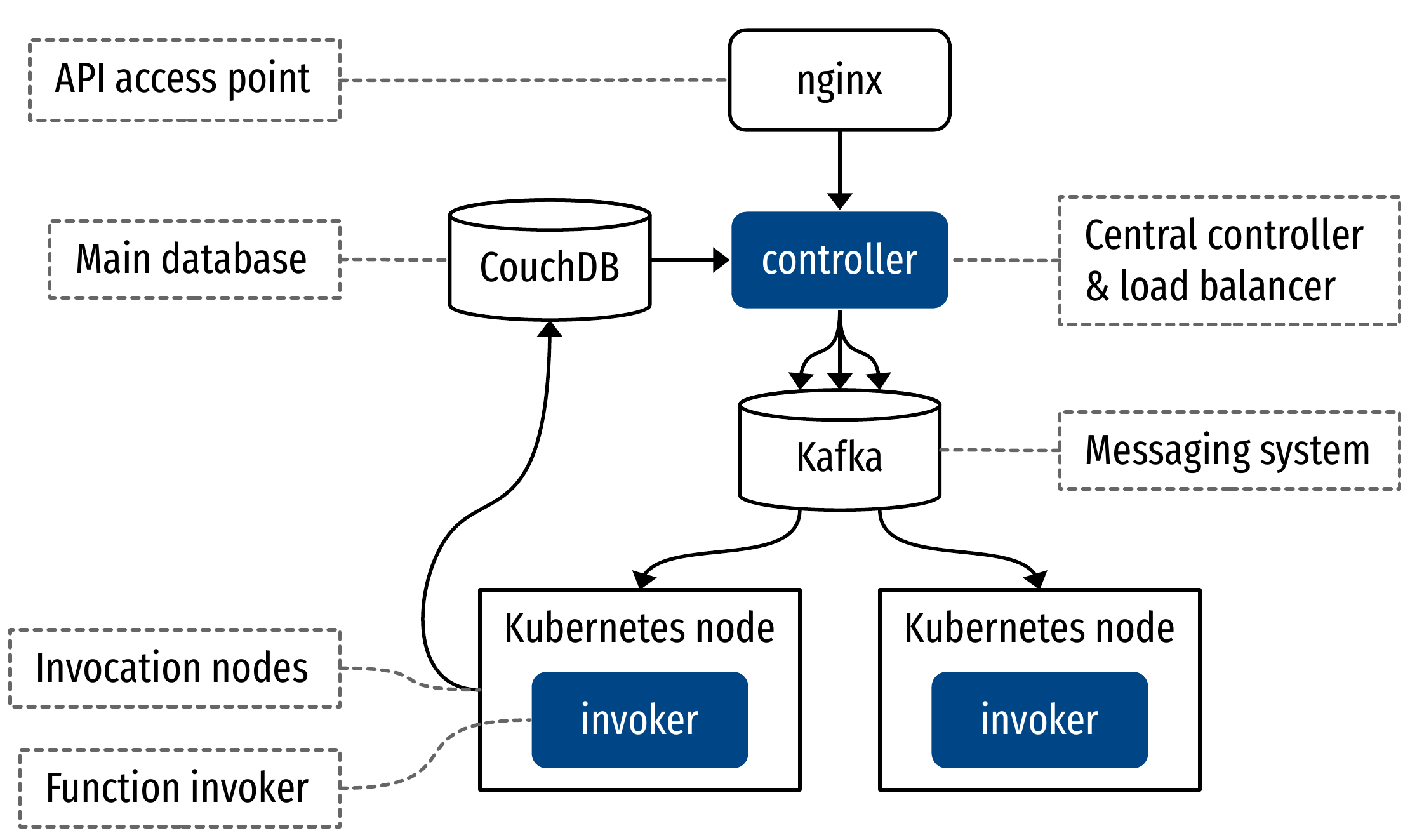

Internals of Apache OpenWhisk

Invocation of a function

1. Control authentication, rights to invoke, housekeeping…
2. Spawn a new container with the function’s runtime
3. Inject the function’s code
4. Execute the function with the request’s parameters
5. Retrieve the function’s result
6. Destroy the container

• Optimizations for steps 2 and 6

Management of function runtime containers

• Creating a new runtime container is slow (compared to serving a request)
  • Hundreds of milliseconds vs. execution time of 100ms
• Solution: reuse existing containers!
  • Functions are stateless: all containers with a function’s runtime are equivalent
• Cold starts and warm starts
  • No runtime container available: cold start
  • Available runtime (ready and idle): warm start
• Cold starts are around 40 times slower!
  • Depends on function runtime, language…
• Importance of managing the runtime container pool
• Concerns:
  • Maintain a pool of pre-warmed containers to speed up first requests
  • But balance between occupied resources and execution latency
    • Pre-warmed containers use resources that are not billed to the user!

Limits of serverless computing

• Latency:
  • cold starts
  • overhead of FaaS platform
• Compatibility with serverful applications
  • What about stateful applications?
    • No per-request local state
  • What about massively parallel applications?
    • Strong isolation between functions makes MPI hard
  • FaaS is not fit for long-running processing
    • Costs more, is less efficient
• Still a recent cloud paradigm!
  • Promising for easy cloud access and cloud-native applications

Serverless computing

• Function-as-a-Service for core business code and features
• Backend-as-a-Service to provide architectural services
• Cloud-native paradigm
  • Fine-grained, elastic, pay-as-you-go, no-management-overhead
• But not suited to all applications
  • Yet?
